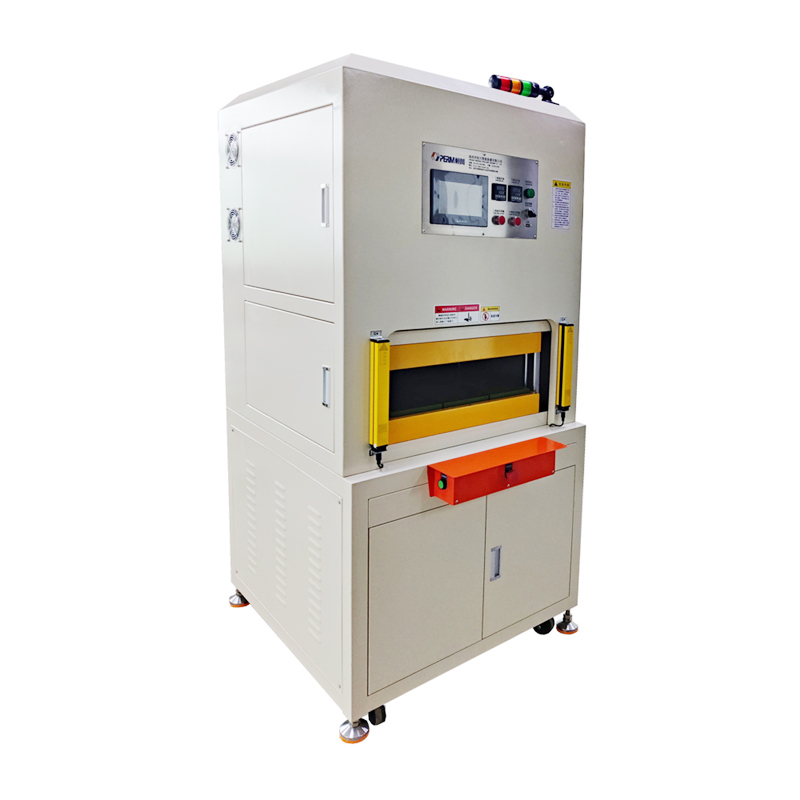

Servo Hot Press - Product Details
1. Product Overview
HC servo hot press integrates high-precision servo control and constant temperature heating technology, featuring stable pressure control, uniform temperature distribution and high processing efficiency. It is a professional thermal processing equipment, widely used in hot pressing, bonding, forming, welding and other scenarios of various materials, with simple operation, energy saving and environmental protection, and strong adaptability to different workpieces.
2. Core Advantages
Precise Temperature & Pressure Control
Adopts closed-loop servo control and intelligent temperature control system, temperature accuracy up to ±1℃, pressure accuracy ±1%F.S. Real-time monitoring and adjustment of temperature and pressure to ensure consistent processing quality of each workpiece.
Energy Saving & High Efficiency
Servo drive + efficient heating tube design, fast temperature rise, low energy consumption. The heating area is evenly distributed, reducing energy waste and improving processing efficiency by 30% compared with traditional hot presses.
Stable & Durable
The body is made of high-strength steel, with strong rigidity and anti-deformation performance. The core servo components and heating system are of high quality, with low failure rate, long service life and stable operation even in long-term high-temperature working environment.
Environmentally Friendly & Safe
No oil leakage, low noise (≤65dB), and equipped with high-temperature insulation protection to avoid scalding. The exhaust device effectively discharges volatile gas during processing, protecting the workshop environment and operators.
Flexible & Intelligent
Humanized touch control screen, supports multi-group temperature, pressure and time parameters storage, quick call and adjustment. It can be connected to automated production lines, suitable for batch and precision processing.
3. Core Parameters (Standard Model)
Item | Value | Notes |
Rated Pressure | 10T-200T (Customizable) | Tonnage can be selected according to actual processing needs |
Heating Temperature | 0-300℃ (Adjustable) | Customizable up to 500℃ for special thermal processing |
Temperature Accuracy | ±2℃ | Ensures uniform temperature across the entire heating area |
Stroke Range | 50-200mm | Stroke can be customized based on workpiece requirements |
Power Supply | 380V/50Hz | Complies with global industrial power standards |
Body Material | High-strength Steel Welding | High rigidity and excellent high-temperature resistance for long-term use |
Note: The above are standard parameters. Customization of pressure, temperature, stroke and heating area is available to meet your specific thermal processing requirements.
4. Application Scenarios
3C Industry: Hot pressing of mobile phone shell, screen bonding, FPC hot pressing
Plastic & Rubber: Hot forming, bonding, trimming of plastic and rubber products
Hardware & Metal: Hot pressing, shaping of metal parts
Composite Materials: Hot pressing and bonding of fiber, foam and other composite materials
Electronic Components: Hot pressing of connectors, capacitors and other components
5. Product Details
High-Precision Servo System
Imported servo motor and ball screw, stable transmission, precise pressure control, no displacement deviation during hot pressing.
Intelligent Heating System
Efficient heating tube + temperature sensor, fast temperature rise, uniform temperature distribution, and automatic heat preservation.
High-Temperature Resistant Workbench
Adopts high-temperature resistant material, wear-resistant and corrosion-resistant, ensuring stable operation under high temperature for a long time.
Safety Protection System
Equipped with emergency stop, high-temperature alarm, safety grating and insulation protection, fully ensuring operator safety.
6. After-Sales Service
1. The warranty period of the complete machine is 20 months, the core parts are 2 years, and the lifetime technical support is provided;
2. Provide professional operation instructions, debugging and operation demonstration videos;
3. Non-standard customization available, with equipment specifications and functions designed to meet actual production needs.
